Tutorial 06: Multi-Agent Systems - Agents Working Together

Overview​

This demonstrates the fan-out/gather pattern - parallel data gathering + sequential synthesis!

Step 1: Get the Working Implementation​

A complete, tested implementation is available in the repository:

# Navigate to the working implementation
cd tutorial_implementation/tutorial06/

# Install dependencies
make setup

# Copy environment template and add your API key
cp content_publisher/.env.example content_publisher/.env
# Edit content_publisher/.env and add your GOOGLE_API_KEY

Alternative: Follow the step-by-step build instructions below to create your own implementation.

Step 2: Create Project Structure (Optional - Skip if using working implementation)​

If you prefer to build from scratch, create this structure:

mkdir content_publisher
cd content_publisher
touch __init__.py agent.py .env

Copy your .env file from previous tutorials.e art of combining Sequential and Parallel agents to build sophisticated multi-agent systems! This tutorial brings together everything you've learned to create production-ready agent architectures that can handle complex, real-world tasks.

🎯 Working Implementation Available: A complete, tested content publishing system is available at tutorial_implementation/tutorial06/. The implementation includes comprehensive tests, documentation, and a user-friendly setup process.

Prerequisites​

  • Completed Tutorials 01-05 - Understanding of agents, tools, Sequential, and Parallel patterns
  • Installed ADK - pip install google-adk
  • API key configured - From Tutorial 01
  • GoogleSearch tool access - Available with Gemini 2.0+ models (automatically enabled)

Core Concepts​

Multi-Agent Architecture​

Real-world problems need multiple agents working together in sophisticated ways:

  • Sequential chains (Tutorial 04) - Order matters: A → B → C
  • Parallel branches (Tutorial 05) - Speed matters: A, B, C run together
  • Nested orchestration - Combining both: Parallel inside Sequential, or vice versa
  • Specialized agents - Each agent has ONE focused responsibility

Common Multi-Agent Patterns​

Pattern 1: Sequential Pipeline

Agent A → Agent B → Agent C

Use when: Each step needs previous step's output

Pattern 2: Fan-Out/Gather

     ┌─ Agent A ─┐
     In ──┼─ Agent B ─┼─→ Merger → Out
     └─ Agent C ─┘

Use when: Gather data from multiple sources, then synthesize

Pattern 3: Nested Workflows (This Tutorial!)

       ┌─ Sequential: A → B ─┐
       In ────┼─ Sequential: C → D ─┼─→ Final Agent → Out
       └─ Sequential: E → F ─┘

     Parallel Container

Use when: Multiple independent pipelines, then final synthesis

Real Research with GoogleSearch Tool​

🎯 Enhanced with Real Web Search: This tutorial now uses ADK's builtin google_search tool to perform actual web research instead of simulated responses. This makes the content publishing system much more powerful and realistic!

The GoogleSearch tool automatically:

  • Searches the web for current, relevant information
  • Provides factual, up-to-date data from credible sources
  • Works seamlessly with Gemini 2.0+ models
  • No additional setup required beyond your API key

Why Real Search Matters:

  • ✅ Authentic content - Based on actual web research
  • ✅ Current information - Always up-to-date with latest news
  • ✅ Credible sources - Draws from real websites and publications
  • ✅ Educational value - Shows how to build production-ready research systems

Use Case​

We're building a Content Publishing System for a digital magazine that needs to:

  1. Research Phase (3 parallel pipelines):
    • News Pipeline: Fetch current events → Summarize key points
    • Social Pipeline: Gather trending topics → Analyze sentiment
    • Expert Pipeline: Find expert opinions → Extract quotes
  2. Content Creation Phase (sequential):
    • Combine all research
    • Write article draft
    • Edit for clarity
    • Format for publication

This demonstrates nested orchestration: 3 parallel sequential pipelines + final sequential synthesis!

Step 1: Create Project Structure​

mkdir content_publisher
cd content_publisher
touch __init__.py agent.py .env

Copy your .env file from previous tutorials.

Step 2: Set Up Package Import​

content_publisher/init.py

from . import agent

Step 3: Build the Multi-Agent System​

content_publisher/agent.py

from __future__ import annotations

from google.adk.agents import Agent, ParallelAgent, SequentialAgent
from google.adk.tools import google_search

# =====================================================
# PARALLEL BRANCH 1: News Research Pipeline
# =====================================================
news_fetcher = Agent(
    name="news_fetcher",
    model="gemini-2.0-flash",
    description="Fetches current news articles using Google Search",
    instruction=(
        "You are a news researcher. Based on the user's topic, search for "
        "current news articles and recent developments.\n"
        "\n"
        "Use the google_search tool to find 3-4 current news articles.\n"
        "Focus on recent, credible news sources from the past 6 months.\n"
        "\n"
        "Output a bulleted list with:\n"
        "• Source + Headline + Brief summary\n"
        "• Include publication dates when available\n"
        "\n"
        "Search query should be: '[topic] news recent developments site:reputable-news-sites'"
    ),
    tools=[google_search],
    output_key="raw_news"
)

news_summarizer = Agent(
    name="news_summarizer",
    model="gemini-2.0-flash",
    description="Summarizes key news points",
    instruction=(
        "Summarize the news articles into 2-3 key takeaways.\n"
        "\n"
        "**Raw News:**\n"
        "{raw_news}\n"
        "\n"
        "Output format:\n"
        "KEY TAKEAWAYS:\n"
        "1. First key point\n"
        "2. Second key point\n"
        "3. Third key point"
    ),
    output_key="news_summary"
)

# Sequential pipeline for news research
news_pipeline = SequentialAgent(
    name="NewsPipeline",
    sub_agents=[news_fetcher, news_summarizer],
    description="Fetches and summarizes news"
)

# =====================================================
# PARALLEL BRANCH 2: Social Media Research Pipeline
# =====================================================
social_monitor = Agent(
    name="social_monitor",
    model="gemini-2.0-flash",
    description="Monitors social media trends using Google Search",
    instruction=(
        "You are a social media analyst. Based on the user's topic, search for "
        "trending discussions, popular hashtags, and public sentiment.\n"
        "\n"
        "Use the google_search tool to find:\n"
        "• Trending hashtags and topics on social platforms\n"
        "• Recent social media discussions and viral content\n"
        "• Public opinion and sentiment analysis\n"
        "\n"
        "Search for: '[topic] social media trends reddit twitter discussion'\n"
        "\n"
        "Output:\n"
        "• 3-4 trending hashtags or topics\n"
        "• Popular discussion themes\n"
        "• General sentiment (positive/negative/mixed) with evidence"
    ),
    tools=[google_search],
    output_key="raw_social"
)

sentiment_analyzer = Agent(
    name="sentiment_analyzer",
    model="gemini-2.0-flash",
    description="Analyzes social sentiment",
    instruction=(
        "Analyze the social media data and extract key insights.\n"
        "\n"
        "**Social Media Data:**\n"
        "{raw_social}\n"
        "\n"
        "Output format:\n"
        "SOCIAL INSIGHTS:\n"
        "• Trending: [hashtags/topics]\n"
        "• Sentiment: [overall mood]\n"
        "• Key Themes: [main discussion points]"
    ),
    output_key="social_insights"
)

# Sequential pipeline for social research
social_pipeline = SequentialAgent(
    name="SocialPipeline",
    sub_agents=[social_monitor, sentiment_analyzer],
    description="Monitors and analyzes social media"
)

# =====================================================
# PARALLEL BRANCH 3: Expert Opinion Pipeline
# =====================================================
expert_finder = Agent(
    name="expert_finder",
    model="gemini-2.0-flash",
    description="Finds expert opinions using Google Search",
    instruction=(
        "You are an expert opinion researcher. Based on the user's topic, search for "
        "what industry experts, academics, or thought leaders are saying.\n"
        "\n"
        "Use the google_search tool to find:\n"
        "• Industry experts and their credentials\n"
        "• Academic researchers and their affiliations\n"
        "• Thought leaders and their recent statements\n"
        "\n"
        "Search for: '[topic] expert opinion academic research thought leader'\n"
        "\n"
        "Output:\n"
        "• 2-3 expert names and their credentials\n"
        "• Their key statements or positions\n"
        "• Source (where they said it) with links when available"
    ),
    tools=[google_search],
    output_key="raw_experts"
)

quote_extractor = Agent(
    name="quote_extractor",
    model="gemini-2.0-flash",
    description="Extracts quotable insights",
    instruction=(
        "Extract the most impactful quotes and insights from expert opinions.\n"
        "\n"
        "**Expert Opinions:**\n"
        "{raw_experts}\n"
        "\n"
        "Output format:\n"
        "EXPERT INSIGHTS:\n"
        "• Quote 1: \"...\" - [Expert Name], [Credentials]\n"
        "• Quote 2: \"...\" - [Expert Name], [Credentials]"
    ),
    output_key="expert_quotes"
)

# Sequential pipeline for expert research
expert_pipeline = SequentialAgent(
    name="ExpertPipeline",
    sub_agents=[expert_finder, quote_extractor],
    description="Finds and extracts expert opinions"
)

# =====================================================
# PHASE 1: PARALLEL RESEARCH (3 pipelines run together!)
# =====================================================
parallel_research = ParallelAgent(
    name="ParallelResearch",
    sub_agents=[
        news_pipeline,    # Sequential: fetch → summarize
        social_pipeline,  # Sequential: monitor → analyze
        expert_pipeline   # Sequential: find → extract
    ],
    description="Runs all research pipelines concurrently"
)

# =====================================================
# PHASE 2: CONTENT CREATION (Sequential synthesis)
# =====================================================
article_writer = Agent(
    name="article_writer",
    model="gemini-2.0-flash",
    description="Writes article draft from all research",
    instruction=(
        "You are a professional writer. Write an engaging article using ALL "
        "the research below.\n"
        "\n"
        "**News Summary:**\n"
        "{news_summary}\n"
        "\n"
        "**Social Insights:**\n"
        "{social_insights}\n"
        "\n"
        "**Expert Quotes:**\n"
        "{expert_quotes}\n"
        "\n"
        "Write a 4-5 paragraph article that:\n"
        "- Opens with a compelling hook\n"
        "- Incorporates news, social trends, and expert opinions naturally\n"
        "- Uses expert quotes effectively\n"
        "- Has a strong conclusion\n"
        "\n"
        "Output ONLY the article text."
    ),
    output_key="draft_article"
)

article_editor = Agent(
    name="article_editor",
    model="gemini-2.0-flash",
    description="Edits article for clarity and impact",
    instruction=(
        "You are an editor. Review and improve the article below.\n"
        "\n"
        "**Draft Article:**\n"
        "{draft_article}\n"
        "\n"
        "Edit for:\n"
        "- Clarity and flow\n"
        "- Impact and engagement\n"
        "- Grammar and style\n"
        "\n"
        "Output the improved article."
    ),
    output_key="edited_article"
)

article_formatter = Agent(
    name="article_formatter",
    model="gemini-2.0-flash",
    description="Formats article for publication",
    instruction=(
        "Format the article for publication with proper markdown.\n"
        "\n"
        "**Article:**\n"
        "{edited_article}\n"
        "\n"
        "Add:\n"
        "- Compelling title (# heading)\n"
        "- Byline (By: AI Content Team)\n"
        "- Section headings where appropriate (## subheadings)\n"
        "- Proper formatting (bold, italic, quotes)\n"
        "- Publication date placeholder\n"
        "\n"
        "Output the final formatted article."
    ),
    output_key="published_article"
)

# =====================================================
# COMPLETE MULTI-AGENT SYSTEM
# =====================================================
content_publishing_system = SequentialAgent(
    name="ContentPublishingSystem",
    sub_agents=[
        parallel_research,  # Phase 1: Research (3 parallel pipelines!)
        article_writer,     # Phase 2: Draft
        article_editor,     # Phase 3: Edit
        article_formatter   # Phase 4: Format
    ],
    description="Complete content publishing system with parallel research and sequential creation"
)

# MUST be named root_agent for ADK
root_agent = content_publishing_system

Architecture Visualization​

User: "Write article about electric vehicles"
    ↓
┌─────────────────────────────────────────────────────────┐
│  PHASE 1: Parallel Research (3 Sequential Pipelines)    │
├─────────────────────────────────────────────────────────┤
│  News Pipeline:    fetch → summarize → news_summary     │
│  Social Pipeline:  monitor → analyze → social_insights  │ ← ALL RUN
│  Expert Pipeline:  find → extract → expert_quotes       │   AT ONCE!
└─────────────────────────────────────────────────────────┘
    ↓ (waits for ALL 3 to complete)
┌─────────────────────────────────────────────────────────┐
│  PHASE 2: Sequential Content Creation                   │
├─────────────────────────────────────────────────────────┤
│  Writer:    combines all research → draft_article       │
│  Editor:    reviews draft → edited_article              │ ← ONE AT
│  Formatter: adds markdown → published_article           │   A TIME
└─────────────────────────────────────────────────────────┘
    ↓
Final Output: Publication-ready article!

Why This Architecture Works:

  1. Phase 1 (Parallel Research):

    • 3 independent research areas (news, social, expert)
    • Each has 2-step pipeline (gather → process)
    • All 3 pipelines run simultaneously = FAST

  2. Phase 2 (Sequential Creation):

    • Writer NEEDS all 3 research outputs
    • Editor NEEDS writer's draft
    • Formatter NEEDS editor's version
    • Must run in order = QUALITY

  3. Best of Both Worlds:

    • Speed from parallelism (research phase)
    • Quality from sequential flow (creation phase)

Step 4: Run the Publishing System​

Demo in Action​

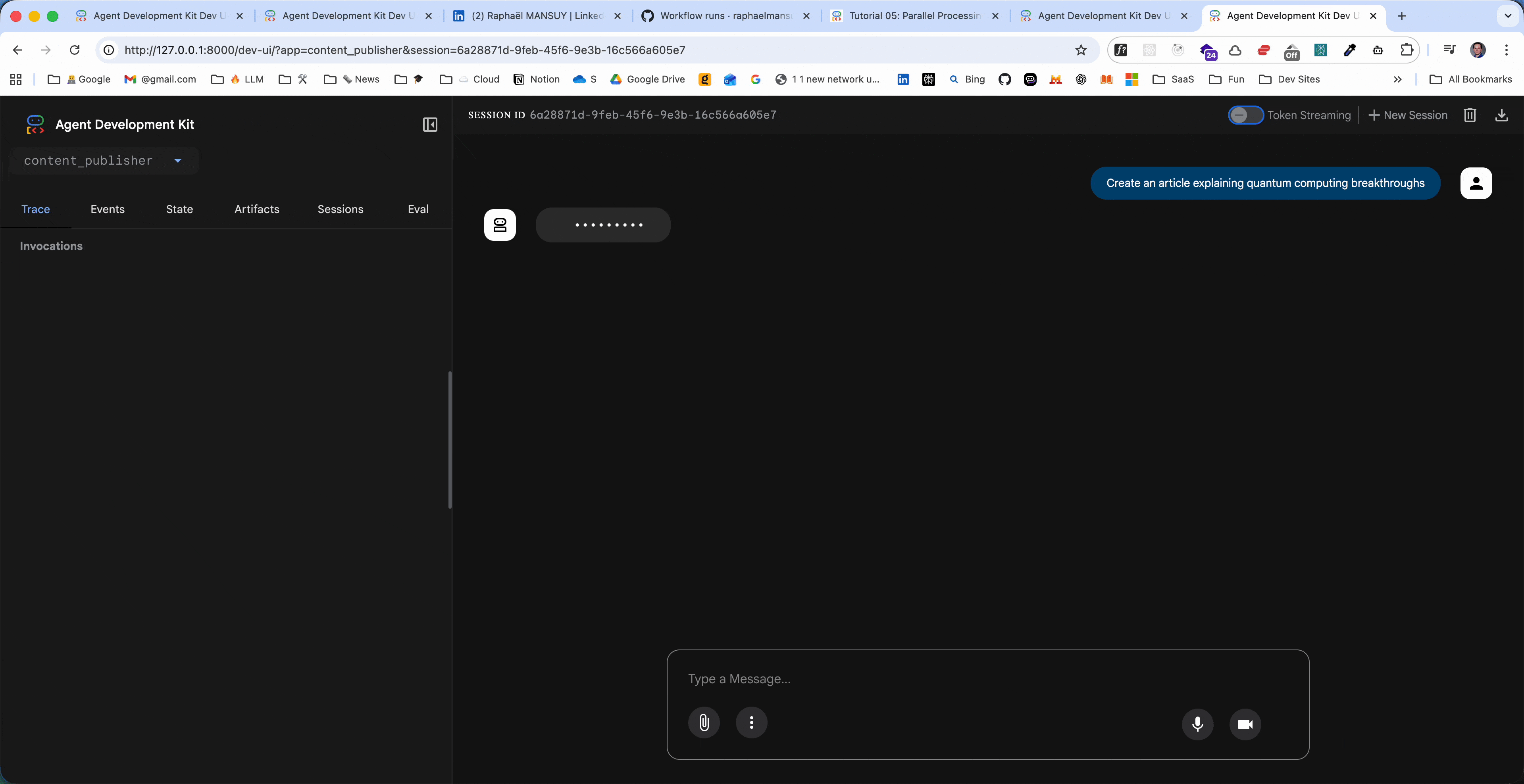

Here's what your multi-agent publishing system looks like in action:

Tutorial 06 Demo - Multi-Agent Systems Content Publisher

Using the Working Implementation​

# From tutorial_implementation/tutorial06/
make dev

Open http://localhost:8000 and select "content_publisher".

Manual Setup (if building from scratch)​

Navigate to parent directory and launch:

cd ..  # Go to parent of content_publisher/
adk web

Open http://localhost:8000 and select "content_publisher".

Try These Prompts​

Technology Topic:

Write an article about artificial intelligence in healthcare

Current Events:

Create an article about renewable energy adoption

Business Topic:

Write about the future of remote work

Science Topic:

Create an article explaining quantum computing breakthroughs

Understanding the Execution Flow​

Open the Events tab to see the sophisticated orchestration:

Phase 1: Parallel Research Starts

  1. Event: ParallelResearch starts
  2. Events (ALL SIMULTANEOUSLY):
    • NewsPipeline starts
      • news_fetcher runs
      • news_summarizer runs
    • SocialPipeline starts
      • social_monitor runs
      • sentiment_analyzer runs
    • ExpertPipeline starts
      • expert_finder runs
      • quote_extractor runs
  3. Event: ParallelResearch completes (when ALL 3 pipelines done)

Phase 2: Sequential Content Creation 4. Event: article_writer starts (with all 3 research outputs injected) 5. Event: article_writer completes 6. Event: article_editor starts (with draft) 7. Event: article_editor completes 8. Event: article_formatter starts (with edited version) 9. Event: article_formatter completes → DONE!

Watch how 6 agents in Phase 1 run concurrently, then 3 agents in Phase 2 run sequentially!

Testing Your Implementation​

The working implementation includes comprehensive tests to validate your understanding:

# From tutorial_implementation/tutorial06/
make test

Test Coverage:

  • ✅ Individual agent configurations (9 agents)
  • ✅ Sequential pipeline structures (3 pipelines)
  • ✅ Parallel research orchestration
  • ✅ Complete system integration
  • ✅ State management and data flow
  • ✅ Import validation and module structure
  • ✅ Project file organization

Quick Demo:

# Test basic functionality without full ADK setup
make demo

This validates that your agents load correctly and the pipeline structure is sound.

Expected Behavior​

Example: "Write an article about electric vehicles"

User: Write an article about electric vehicles

[Phase 1: All 3 pipelines run in parallel - watch Events!]

News Summary:
KEY TAKEAWAYS:
1. EV sales hit record 1.2M units in Q3 2024 (Source: Bloomberg, Oct 2024)
2. Tesla Cybertruck production begins with 1,500 deliveries (Reuters, Oct 2024)
3. EU mandates all new cars to be zero-emission by 2035 (BBC News, Sep 2024)

Social Insights:
SOCIAL INSIGHTS:
• Trending: #ElectricVehicles #EVs #SustainableTransport #Tesla
• Sentiment: 78% positive, growing adoption excitement
• Key Themes: Range anxiety decreasing, charging infrastructure improving, cost savings over gas

Expert Quotes:
EXPERT INSIGHTS:
• "Battery costs have dropped 90% since 2010, making EVs cheaper to own" - Dr. Menahem Anderman, President of Total Battery Consulting
• "By 2030, EVs will represent 60% of new vehicle sales globally" - BloombergNEF Electric Vehicle Outlook 2024
• "The transition to electric vehicles is accelerating faster than predicted" - Prof. David Greene, University of Tennessee

[Phase 2: Sequential content creation]

[Writer combines all research into draft]
[Editor improves clarity and flow]
[Formatter adds publication styling]

Final Output:
# The Electric Vehicle Revolution: Accelerating Toward a Sustainable Future

**By: AI Content Team** | *October 2024*

The automotive industry is undergoing its most dramatic transformation since the invention of the internal combustion engine. Electric vehicles (EVs) have moved from niche market curiosity to mainstream transportation solution, with sales reaching record levels and major manufacturers committing to all-electric futures...

[Complete formatted article with real research data, expert quotes, and social insights]

Note: Actual search results will vary based on current events and web content at the time of execution. The system now performs real Google searches for authentic, up-to-date information!

How It Works (Behind the Scenes)​

Nested Agent Execution:

  1. Outer SequentialAgent controls main phases:
    • sub_agents = [parallel_research, writer, editor, formatter]
  2. parallel_research (ParallelAgent) runs 3 sub-agents concurrently:
    • Each sub-agent is itself a SequentialAgent!
    • NewsPipeline runs: fetcher → summarizer
    • SocialPipeline runs: monitor → analyzer
    • ExpertPipeline runs: finder → extractor
  3. State Management:
    • Each pipeline saves to its own output_key
    • Writer reads {news_summary}, {social_insights}, {expert_quotes}
    • Editor reads {draft_article}
    • Formatter reads {edited_article}

Performance Characteristics:

  • Without parallelism: ~60 seconds (6 research agents + 3 creation agents)
  • With parallelism: ~25 seconds (6 research agents run together!)
  • Speedup: ~2.4x faster

Key Takeaways​

✅ Nest Sequential inside Parallel - Multiple independent pipelines running concurrently

✅ Nest Parallel inside Sequential - Phases of work where one phase needs parallelism

✅ Each agent has ONE job - Specialized, focused, testable

✅ State flows through output_keys - Explicit data dependencies

✅ Sophisticated orchestration is simple - Just compose Sequential + Parallel

✅ Real performance gains - Parallel research phase is 3x faster

✅ Production-ready patterns - Used in real content systems, data pipelines, analysis tools

Best Practices​

DO:

  • Draw your architecture before coding (visualize the flow!)
  • Keep agents focused (one clear responsibility)
  • Use descriptive names (news_fetcher, not agent1)
  • Plan state flow (what keys does each agent need?)
  • Test individual pipelines before composing
  • Monitor Events tab to verify execution

DON'T:

  • Over-nest (3+ levels deep gets confusing)
  • Create agents that do multiple things
  • Forget to set output_keys (breaks state flow!)
  • Assume execution order in parallel blocks
  • Skip the planning phase (complexity needs design!)

Common Issues​

Problem: "Agents in parallel block seem to run sequentially"

  • Solution: Check Events tab for actual start times
  • Solution: Model API might be rate-limiting concurrent requests

Problem: "Writer agent missing research data"

  • Solution: Verify each pipeline sets its output_key
  • Solution: Check {key} names in writer instruction match exactly

Problem: "One research pipeline fails, whole system stops"

  • Solution: ParallelAgent waits for ALL - one failure blocks
  • Solution: Add error handling or retry logic to individual agents

Problem: "Hard to debug nested agents"

  • Solution: Test each pipeline individually first
  • Solution: Use Events tab to trace execution flow
  • Solution: Add descriptive agent names and descriptions

What We Built​

You now have a production-grade content publishing system that:

  • Researches from 3 independent sources concurrently
  • Processes each source with specialized pipelines
  • Synthesizes everything into publication-ready content
  • Demonstrates sophisticated multi-agent orchestration

And you understand how to architect complex agent systems!

Real-World Applications​

Multi-Agent Systems Are Perfect For:

  • Content Platforms: Research → Write → Edit → Publish (this tutorial!)
  • Data Analysis: Gather data (parallel) → Merge → Analyze → Visualize
  • E-Commerce: Check inventory + pricing + reviews (parallel) → Recommend
  • Customer Support: Classify → Route (parallel specialists) → Respond → Follow-up
  • Financial Analysis: Market data + news + sentiment (parallel) → Analyze → Report
  • Code Generation: Design + Implement + Review + Test + Document

Next Steps​

🚀 Tutorial 07: Loop Agents - Learn iterative refinement for quality improvement

📖 Further Reading:

Exercises (Try On Your Own!)​

  1. Add more research pipelines - Academic papers, patent databases, competitor analysis
  2. Conditional routing - Have a classifier decide which pipelines to run
  3. Quality control - Add a fact-checker agent before publication
  4. A/B testing - Run 2 parallel writer agents, have editor choose best
  5. Nested parallel - Make each research pipeline spawn its own parallel sub-agents

Complete Code Reference​

Working Implementation: See tutorial_implementation/tutorial06/ for a complete, tested version with comprehensive documentation.

Key Files:

Quick Start with Working Code:

cd tutorial_implementation/tutorial06/
make setup  # Install dependencies
make test   # Run all tests (62 passing)
make dev    # Start development server

Manual Implementation:

content_publisher/init.py

from . import agent

content_publisher/.env

GOOGLE_GENAI_USE_VERTEXAI=FALSE
GOOGLE_API_KEY=your-api-key-here

content_publisher/agent.py

# See Step 3 above for complete code

Congratulations! You've mastered multi-agent orchestration! 🎯🚀📰

💬 Join the Discussion

Have questions or feedback? Discuss this tutorial with the community on GitHub Discussions.
