Tutorial 05: Parallel Processing - Run Multiple Agents Simultaneously

Overview

Learn how to execute multiple agents concurrently to dramatically speed up your workflows! This tutorial teaches you the ParallelAgent pattern and the powerful fan-out/gather technique - essential for any real-world agent system that needs performance.

🎯 Working Implementation Available: A complete, tested travel planning system is available at tutorial_implementation/tutorial05/. The implementation includes comprehensive tests, documentation, and a user-friendly setup process.

Prerequisites

• Completed Tutorials 01-04 - Understanding of agents, tools, and sequential workflows
• Installed ADK - pip install google-adk
• API key configured - From Tutorial 01

Core Concepts

ParallelAgent

The ParallelAgent executes multiple sub-agents concurrently (at the same time), not sequentially. This is perfect when:

• Tasks are independent (don't depend on each other)
• You want speed (faster than running one-by-one)
• You're gathering information from multiple sources

Key Characteristics:

• All sub-agents start at the same time
• Agents run independently (no shared data during execution)
• ParallelAgent waits for ALL to complete
• Returns when the slowest agent finishes

When to Use Parallel vs Sequential

Use ParallelAgent when:

• ✅ Tasks are independent (can run in any order)
• ✅ Speed matters (want results faster)
• ✅ Gathering data from multiple sources
• ✅ Tasks don't need each other's outputs

Use SequentialAgent when:

• ✅ Tasks MUST happen in specific order
• ✅ Each step needs previous step's output
• ✅ Building a pipeline (output flows between agents)

Fan-Out/Gather Pattern

This is THE killer pattern for real-world agents:

1. Fan-Out (Parallel) → Run multiple agents concurrently to gather data
2. Gather (Sequential) → Merge all results with a final agent

        ┌──── Agent 1 (flights) ────┐
        User ───┼──── Agent 2 (hotels) ─────┼──→ Merger Agent → Final Result
        └──── Agent 3 (activities) ─┘

      ParallelAgent (fast!)       SequentialAgent (combine)

This gives you both speed (parallel data gathering) and synthesis (merging results).

Use Case

We're building a Smart Travel Planner that helps users plan trips by:

1. Searching flights (concurrent)
2. Searching hotels (concurrent)
3. Finding activities (concurrent)
4. Merging everything into a complete itinerary (sequential)

This demonstrates the fan-out/gather pattern - parallel data gathering + sequential synthesis!

Step 1: Get the Working Implementation

A complete, tested implementation is available in the repository:

# Navigate to the working implementation
cd tutorial_implementation/tutorial05/

# Install dependencies
make setup

# Copy environment template and add your API key
cp travel_planner/.env.example travel_planner/.env
# Edit travel_planner/.env and add your GOOGLE_API_KEY

Alternative: Follow the step-by-step build instructions below to create your own implementation.

Step 2: Create Project Structure (Optional - Skip if using working implementation)

If you prefer to build from scratch, create this structure:

mkdir travel_planner
cd travel_planner
touch __init__.py agent.py .env

Copy your .env file from previous tutorials.

Project Structure

The working implementation follows this structure:

tutorial05/
├── travel_planner/           # Agent implementation
│   ├── __init__.py          # Package initialization
│   ├── agent.py             # Agent definitions and pipeline
│   └── .env.example         # Environment template
├── tests/                   # Comprehensive test suite
│   ├── __init__.py
│   ├── test_agent.py        # Agent and pipeline tests
│   ├── test_imports.py      # Import validation tests
│   └── test_structure.py    # Project structure tests
├── requirements.txt         # Python dependencies
├── Makefile                # Development commands
└── README.md               # Implementation documentation

Key Components:

• travel_planner/agent.py: Complete ParallelAgent + SequentialAgent pipeline
• tests/test_agent.py: 57 tests covering all functionality
• Makefile: make setup, make test, make dev, make demo commands
• .env.example: Template for API key configuration

Step 2: Set Up Package Import

travel_planner/init.py

from . import agent

Step 3: Define the Travel Planning Agents

travel_planner/agent.py

from __future__ import annotations

from google.adk.agents import Agent, ParallelAgent, SequentialAgent

# ============================================================================
# PARALLEL SEARCH AGENTS
# ============================================================================

# ===== Parallel Branch 1: Flight Finder =====
flight_finder = Agent(
    name="flight_finder",
    model="gemini-2.0-flash",
    description="Searches for available flights",
    instruction=(
        "You are a flight search specialist. Based on the user's travel request, "
        "search for available flights.\n"
        "\n"
        "Provide 2-3 flight options with:\n"
        "- Airline name\n"
        "- Departure and arrival times\n"
        "- Price range\n"
        "- Flight duration\n"
        "\n"
        "Format as a bulleted list. Be specific and realistic."
    ),
    output_key="flight_options"  # Saves to state
)

# ===== Parallel Branch 2: Hotel Finder =====
hotel_finder = Agent(
    name="hotel_finder",
    model="gemini-2.0-flash",
    description="Searches for available hotels",
    instruction=(
        "You are a hotel search specialist. Based on the user's travel request, "
        "find suitable hotels.\n"
        "\n"
        "Provide 2-3 hotel options with:\n"
        "- Hotel name and rating\n"
        "- Location (district/area)\n"
        "- Price per night\n"
        "- Key amenities\n"
        "\n"
        "Format as a bulleted list. Be specific and realistic."
    ),
    output_key="hotel_options"  # Saves to state
)

# ===== Parallel Branch 3: Activity Finder =====
activity_finder = Agent(
    name="activity_finder",
    model="gemini-2.0-flash",
    description="Finds activities and attractions",
    instruction=(
        "You are a local activities expert. Based on the user's travel request, "
        "recommend activities and attractions.\n"
        "\n"
        "Provide 4-5 activity suggestions with:\n"
        "- Activity name\n"
        "- Description (1 sentence)\n"
        "- Estimated duration\n"
        "- Estimated cost\n"
        "\n"
        "Format as a bulleted list. Include mix of paid/free activities."
    ),
    output_key="activity_options"  # Saves to state
)

# ============================================================================
# FAN-OUT: PARALLEL DATA GATHERING
# ============================================================================

# Create the ParallelAgent for concurrent search
parallel_search = ParallelAgent(
    name="ParallelSearch",
    sub_agents=[
        flight_finder,
        hotel_finder,
        activity_finder
    ],  # All run AT THE SAME TIME!
    description="Searches flights, hotels, and activities concurrently"
)

# ============================================================================
# GATHER: SEQUENTIAL RESULT MERGING
# ============================================================================

# ===== Gather: Merge Results into Itinerary =====
itinerary_builder = Agent(
    name="itinerary_builder",
    model="gemini-2.0-flash",
    description="Combines all search results into a complete travel itinerary",
    instruction=(
        "You are a travel planner. Create a complete, well-organized itinerary "
        "by combining the search results below.\n"
        "\n"
        "**Available Flights:**\n"
        "{flight_options}\n"  # Reads from state!
        "\n"
        "**Available Hotels:**\n"
        "{hotel_options}\n"  # Reads from state!
        "\n"
        "**Recommended Activities:**\n"
        "{activity_options}\n"  # Reads from state!
        "\n"
        "Create a formatted itinerary that:\n"
        "1. Recommends the BEST option from each category (flights, hotel)\n"
        "2. Organizes activities into a day-by-day plan\n"
        "3. Includes estimated total cost\n"
        "4. Adds helpful travel tips\n"
        "\n"
        "Format beautifully with clear sections and markdown."
    ),
    output_key="final_itinerary"
)

# ============================================================================
# COMPLETE FAN-OUT/GATHER PIPELINE
# ============================================================================

# Combine parallel search with sequential merge
travel_planning_system = SequentialAgent(
    name="TravelPlanningSystem",
    sub_agents=[
        parallel_search,     # Step 1: Gather data in parallel (FAST!)
        itinerary_builder    # Step 2: Merge results (synthesis)
    ],
    description="Complete travel planning system with parallel search and itinerary building"
)

# MUST be named root_agent for ADK discovery
root_agent = travel_planning_system

Code Breakdown

Fan-Out/Gather Flow:

User: "Plan a trip to Tokyo for 5 days"
    ↓
ParallelAgent starts (3 agents run AT SAME TIME):
    ├─ flight_finder → searches flights → state['flight_options']
    ├─ hotel_finder → searches hotels → state['hotel_options']
    └─ activity_finder → finds activities → state['activity_options']
    ↓ (waits for ALL to complete)
ParallelAgent completes
    ↓
itinerary_builder runs (reads all 3 keys from state)
    ↓
Final Output: complete travel itinerary

Why This Pattern Works:

1. Parallel search is FAST - 3 agents run concurrently (not one-by-one)
2. Independent tasks - Flight search doesn't need hotel data
3. Sequential merge - Itinerary builder needs ALL search results
4. Best of both worlds - Speed (parallel) + synthesis (sequential)

Key Design Decisions:

• Each search agent has focused responsibility
• All search agents save to state with output_key
• Itinerary builder reads all state keys with {key} syntax
• Outer SequentialAgent ensures parallel → sequential flow

Step 4: Run the Travel Planner

Demo in Action

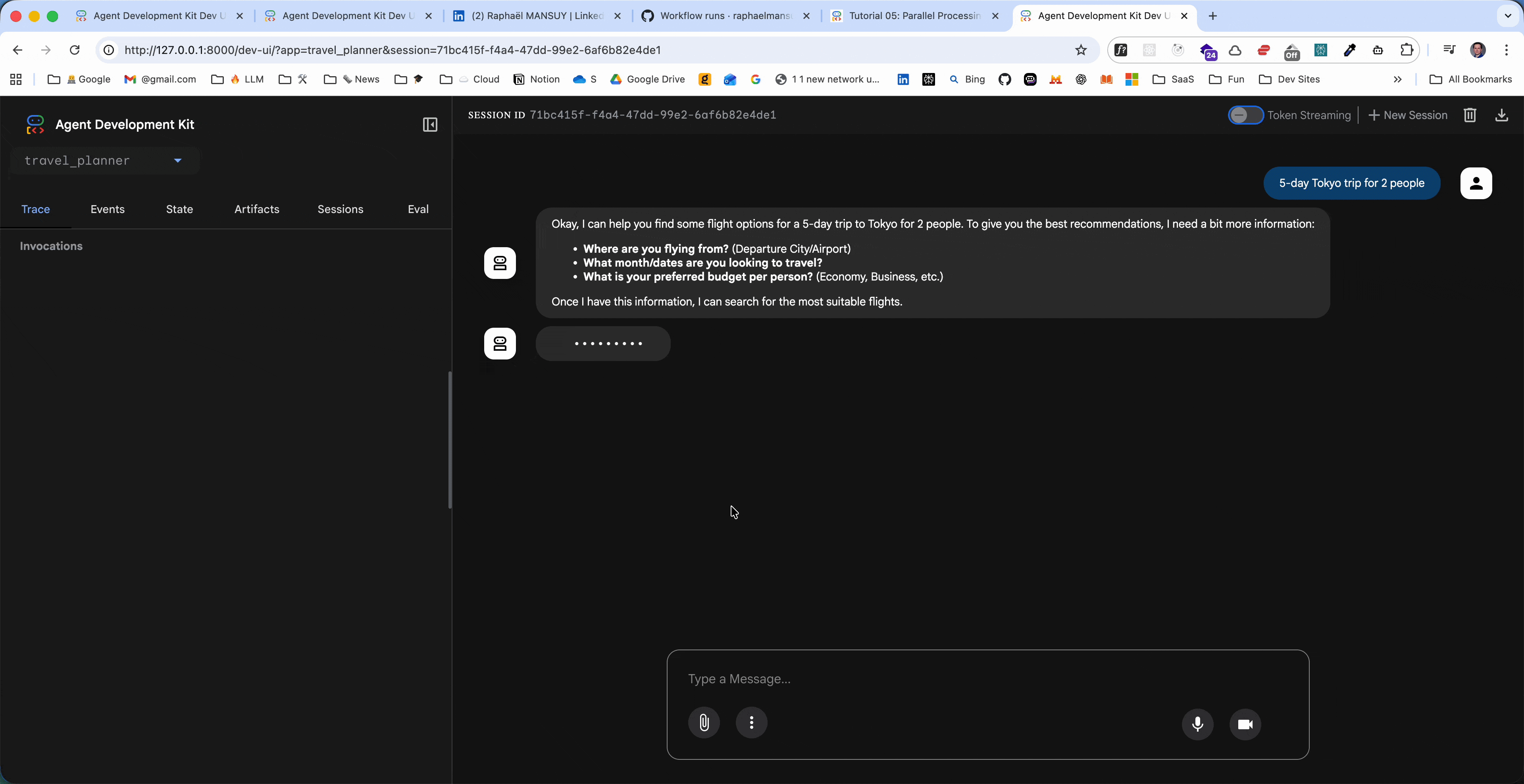

Here's what your parallel processing travel planner looks like in action:

Using the Working Implementation

# From tutorial_implementation/tutorial05/
make dev

Open http://localhost:8000 and select "travel_planner".

Manual Setup (if building from scratch)

Navigate to parent directory and launch:

cd ..  # Go to parent of travel_planner/
adk web

Open http://localhost:8000 and select "travel_planner".

Try These Prompts

Basic Trip:

Plan a 3-day trip to Paris

Detailed Request:

I need a 5-day Tokyo trip for 2 people. Budget-friendly options preferred.

Specific Requirements:

Weekend getaway to New York. Looking for cultural activities and good restaurants.

Beach Vacation:

Plan a relaxing week in Bali with beach activities

Understanding Parallel Execution

Open the Events tab and watch the magic:

1. Event: ParallelAgent starts
2. Events (ALL AT ONCE):
   • Flight finder starts
   • Hotel finder starts
   • Activity finder starts
3. Events (AS THEY COMPLETE):
   • Flight finder completes → saves to state
   • Hotel finder completes → saves to state
   • Activity finder completes → saves to state
4. Event: ParallelAgent completes (when ALL done)
5. Event: Itinerary builder starts (with all 3 keys injected)
6. Event: Itinerary builder completes → final output!

Notice: The 3 search agents don't run in order - they all start together and finish whenever they're done!

Testing Your Implementation

The working implementation includes comprehensive tests to validate your understanding:

# From tutorial_implementation/tutorial05/
make test

Test Coverage:

• ✅ Agent configurations and instructions (57 tests total)
• ✅ ParallelAgent structure and concurrent execution
• ✅ SequentialAgent pipeline flow and state management
• ✅ Data injection between parallel and sequential agents
• ✅ Import validation and module structure
• ✅ Project organization and file structure

Quick Demo:

# Test basic functionality without full ADK setup
make demo

This validates that your agents load correctly and the pipeline structure is sound.

Expected Behavior

Example: "Plan a 3-day trip to Paris"

User: Plan a 3-day trip to Paris

[All 3 agents run in parallel - you'll see them in Events]

Flight Options Found:
• Air France AF1234: NYC → CDG, 7:00am-8:30pm, $650, 7h 30m
• Delta DL456: NYC → CDG, 10:00am-11:45pm, $720, 7h 45m

Hotel Options Found:
• Hotel Le Marais (4★): Central Paris, $180/night, WiFi + Breakfast
• Montmartre Boutique (3★): Artistic district, $130/night, Rooftop view

Activity Options Found:
• Eiffel Tower: Iconic landmark, 2-3 hours, €25
• Louvre Museum: World-famous art, 3-4 hours, €17
• Seine River Cruise: Scenic evening cruise, 1 hour, €15
• Montmartre Walk: Historic neighborhood, 2 hours, Free
• French Cooking Class: Learn local cuisine, 3 hours, €85

[Itinerary builder merges everything]

Final Itinerary:
# Your 3-Day Paris Adventure

## Recommended Flight
✈️ **Air France AF1234** - Best balance of price and timing
- Departs 7:00am, arrives 8:30pm local time
- Price: $650 per person

## Accommodation
🏨 **Hotel Le Marais (4★)** - Perfect central location
- $180/night × 3 nights = $540
- Includes breakfast and WiFi

## Day-by-Day Plan
...

How It Works (Behind the Scenes)

Parallel Execution:

1. ParallelAgent.sub_agents = [flight, hotel, activity]
2. ADK calls .run() on ALL agents simultaneously (async)
3. Each agent executes independently (no shared state during run)
4. ADK waits for ALL to complete
5. Each agent's output saved to its output_key in state

Sequential Merge:

1. After parallel completes, next agent in sequence runs
2. Itinerary builder's instruction has {flight_options}, {hotel_options}, {activity_options}
3. ADK injects values from state into instruction
4. Builder creates final output using all gathered data

Performance:

• Sequential: ~30 seconds (3 agents × 10 seconds each)
• Parallel: ~10 seconds (all 3 run together, limited by slowest)
• 3x faster!

Visual Flow:

Key Takeaways

✅ ParallelAgent runs sub-agents concurrently - Major speed boost

✅ Perfect for independent tasks - Flight search doesn't need hotel data

✅ All agents must complete - ParallelAgent waits for slowest agent

✅ Fan-out/gather is the pattern - Parallel for speed, Sequential for synthesis

✅ Combine with SequentialAgent - Best of both worlds

✅ Watch Events tab - See agents starting simultaneously

✅ Real performance gains - 3-10x faster than sequential for I/O-bound tasks

Best Practices

DO:

• Use for I/O-bound tasks (API calls, web searches, database queries)
• Keep sub-agents independent (no dependencies between them)
• Combine with Sequential for merge/synthesis step
• Use descriptive output_keys for each parallel agent
• Monitor Events tab to verify parallel execution

DON'T:

• Use when agents need each other's outputs (use Sequential instead)
• Assume specific execution order within parallel block
• Forget the merge step (parallel gives you data, need synthesis)
• Use for CPU-bound tasks without threading consideration
• Expect perfect linear speedup (limited by slowest agent)

Common Issues

Problem: "Parallel agents seem to run sequentially"

• Solution: Check Events tab - they should show same start times
• Solution: Might be model API rate limiting

Problem: "Itinerary builder missing some data"

• Solution: Verify each search agent has output_key defined
• Solution: Check {key} names match exactly in itinerary instruction

Problem: "One agent fails, whole system stops"

• Solution: ParallelAgent waits for ALL - one failure blocks
• Solution: Consider error handling in individual agents

Problem: "Not seeing speed improvements"

• Solution: Speed gain depends on task type (I/O vs CPU)
• Solution: Check if you're being rate-limited by APIs

What We Built

You now have a production-quality travel planner that:

• Searches multiple sources concurrently (3x faster!)
• Gathers comprehensive travel information
• Synthesizes everything into a complete itinerary
• Demonstrates the fan-out/gather pattern

And you understand when/how to use parallel execution!

Real-World Applications

Parallel Execution Is Perfect For:

• Data Gathering: Search multiple APIs/databases simultaneously
• Content Creation: Generate multiple variations concurrently
• Analysis: Run different analyses on same data in parallel
• Validation: Check multiple conditions simultaneously
• Multi-Source Research: Academic, news, social media, patents
• Comparison Shopping: Prices, reviews, availability from different sources

Next Steps

🚀 Tutorial 06: Multi-Agent Systems - Combine Sequential and Parallel patterns for sophisticated workflows

📖 Further Reading:

• Parallel Agents Documentation
• Workflow Agents Overview
• Performance Optimization Guide

Exercises (Try On Your Own!)

1. Add more parallel branches - Include weather, currency exchange, travel advisories
2. Error handling - Handle case where one search fails
3. User preferences - Add a preferences agent that customizes recommendations
4. Nested parallel - Have each search agent spawn its own parallel sub-searches
5. Benchmarking - Measure actual speedup comparing sequential vs parallel

Complete Code Reference

Working Implementation: See tutorial_implementation/tutorial05/ for a complete, tested version with comprehensive documentation.

Key Files:

• travel_planner/agent.py - Complete agent implementation
• tests/test_agent.py - 57 comprehensive tests
• README.md - Detailed implementation guide
• Makefile - Development commands

Quick Start with Working Code:

cd tutorial_implementation/tutorial05/
make setup  # Install dependencies
make test   # Run all tests (57 passing)
make dev    # Start development server

Manual Implementation:

travel_planner/init.py

from . import agent

travel_planner/.env

GOOGLE_GENAI_USE_VERTEXAI=FALSE
GOOGLE_API_KEY=your-api-key-here

travel_planner/agent.py

# See Step 3 above for complete code

Congratulations! You've mastered parallel processing and the fan-out/gather pattern! 🚀✈️

💬 Join the Discussion

Have questions or feedback? Discuss this tutorial with the community on GitHub Discussions.
